How To: Per-Key Token Budgets in agentgateway 1.5.0 — Configuring Budgets, Token Costs, and Models

Virtual API keys have always answered two governance questions well: who is calling and which models are they allowed to reach. They never answered the third one — the one finance actually asks:

How much can this key spend before the gateway stops it?

Until now the honest answer in standalone agentgateway was “approximate it with token-based rate limiting,” which is a request-window mechanism wearing a budget’s clothing. agentgateway 1.5.0 fixed that (#3143): a budget is now a field on the key itself, denominated in tokens or dollars, over a rolling window, with Audit or Block enforcement.

This is the hands-on walk-through of the demo that exercises it — 16-api-key-scoped-token-budgets — covering the three things you actually have to configure: the budget, the token costs (if you want dollars), and the models a key can reach. Every field name and every response body below comes from the committed config and a real run, not from memory.

What you’ll build

Two virtual keys with the same 40-token / 1-hour budget and different enforcement, so you can see both halves of the feature in one run:

git clone https://github.com/sebbycorp/agentgateway-demos
cd agentgateway-demos/16-api-key-scoped-token-budgets
export OPENAI_API_KEY='sk-...'   # optional — see below
./setup.sh
./test.sh

setup.sh prefers Docker (cr.agentgateway.dev/agentgateway:v1.5.0) and falls back to the official v1.5.0 host binary if the daemon can’t start a container (AGW_RUNTIME=binary forces that path). If OPENAI_API_KEY is unset it starts mock-openai.py, a stdlib HTTP server that reports exactly 40 total tokens per completion — which is what makes Block trip deterministically on the second call instead of “whenever real usage happens to cross 40.”

Three URLs matter once it’s up:

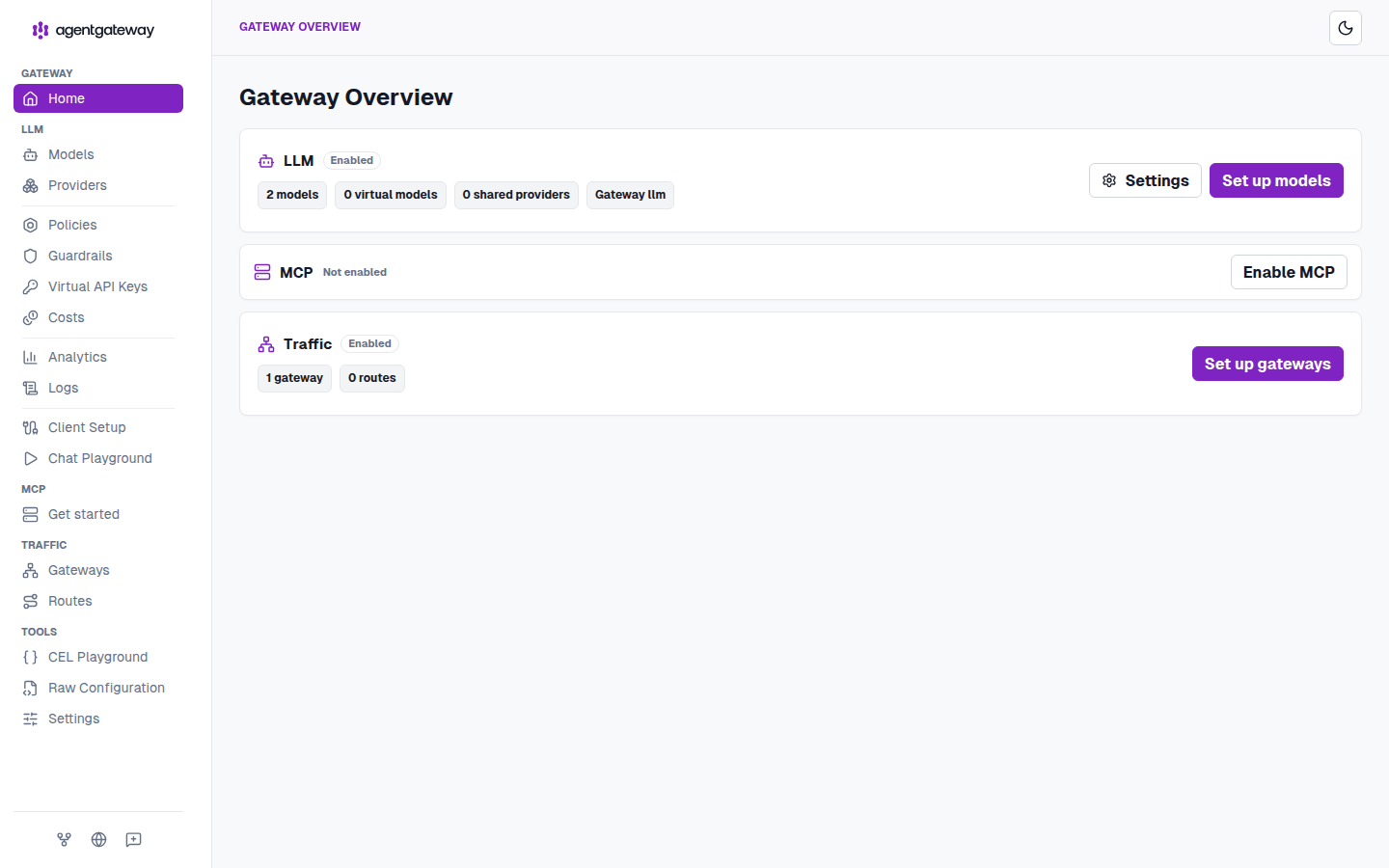

The standalone admin UI at :15000/ui/. Two models, one gateway, no MCP — this demo is pure LLM key governance. Note Virtual API Keys and Costs in the sidebar; you’ll use both.

How a charge actually happens

Before the config, get the mechanism right, because it explains almost every surprise later. The check is before the request; the charge is after the response, and only if the provider reported usage.

Two consequences worth internalising now:

1. The call that crosses the limit still succeeds. You always overshoot by at most one request. A 40-token budget can end the window at 40, 80, or whatever one more completion costs. Budgets are a spend ceiling with a one-request tolerance, not a hard per-request gate.
2. No reported usage, no charge. If a provider returns no usage block, the counter doesn’t move. Token budgets need usage.total_tokens; dollar budgets need a computable response.cost (that’s the whole point of step 4).

Step 1 — configure the database (not optional)

v1.5.0 refuses to register budgets without one. The source is blunt about it: “API key budgets require config.database to be configured.” SQLite is enough.

config:
  adminAddr: 0.0.0.0:15000
  database:
    url: sqlite:///data/data.db

“Hybrid” is the accurate description of what happens next: counters live in memory and are flushed to the database every ~5 seconds. That’s why test.sh sleeps a second before reading /api/budgets/status, and why enforcement stays fast — the check is in-process, not a round trip per request.

One deployment detail that costs an hour if you skip it: setup.sh puts that SQLite file in a named Docker volume, not a host bind mount. On Docker Desktop for macOS, SQLite’s WAL locking fails over the bind-mount filesystem with disk I/O error (code 522). A named volume lives on the Linux VM’s real filesystem and works.

Step 2 — configure the models

Two things are called “models” here and they do different jobs.

The gateway’s model list is what exists at all. Wildcards are allowed, so one entry can cover a family:

llm:
  gateways:
  - llm
  models:
  - name: openai/gpt-4.1-nano
    provider: openAI
    params:
      model: gpt-4.1-nano
      apiKey: $OPENAI_API_KEY
  - name: openai/*
    provider: openAI
    params:
      model: gpt-4.1-nano
      apiKey: $OPENAI_API_KEY

$OPENAI_API_KEY is expanded by the gateway from its environment — the credential is never in the committed file. (The mock path injects a params.baseUrl into a generated .runtime/config.yaml so the tracked config.yaml stays a valid live-OpenAI config.)

allowedModels on the key is what a given caller may reach — a per-key allowlist, wildcards included:

allowedModels:
- openai/*
- gpt-4.1-nano

This is the pairing that makes per-key budgets meaningful: allowedModels decides what a key can spend on, the budget decides how much. A key restricted to a nano model with a 100k-token budget is a genuinely different risk profile from the same budget pointed at a frontier model — and the gateway enforces both without the client’s cooperation. In the UI those two patterns show up as the 2 patterns chip in the MODELS column.

Step 3 — configure the budget

Here’s the whole thing, both keys, straight from the demo’s committed config.yaml:

llm:
  policies:
    apiKey:
      mode: strict
      keys:
      # Tiny Tokens budget + Block: the first completion is allowed (charge is
      # post-response), then the next call in the same window is 429.
      - key: sk-demo-block
        metadata:
          name: demo-block
          team: demo
        allowedModels:
        - openai/*
        - gpt-4.1-nano
        budgets:
        - name: tokens
          limit:
            unit: Tokens
            amount: 40
          window:
            rolling: 1h
          onBudgetExceeded: Block
      # Same limit, Audit: calls keep succeeding while the status API
      # still reports used / remaining / exceeded.
      - key: sk-demo-audit
        metadata:
          name: demo-audit
          team: demo
        allowedModels:
        - openai/*
        - gpt-4.1-nano
        budgets:
        - name: tokens
          limit:
            unit: Tokens
            amount: 40
          window:
            rolling: 1h
          onBudgetExceeded: Audit

The five fields, and what each one actually controls:

mode: strict on the apiKey policy is what makes any of this enforceable: a request with no virtual key is rejected outright, so there’s no unbudgeted path through the listener.

The window is aligned to the Unix epoch, not to your first request

This is the single most surprising thing about the feature, so it’s worth being concrete. rolling: 1h does not mean “sixty minutes from the first call.” It means consecutive one-hour periods counted from 1970-01-01T00:00:00Z — i.e. UTC clock hours. 24h starts at midnight UTC. 30d is consecutive 30-day periods from the epoch, which will not line up with anyone’s calendar month.

From the real status snapshot below, the window was start: 1787860800000, end: 1787864400000 — 20:00:00Z to 21:00:00Z on 2026-08-27, exactly on the hour. Two practical consequences: a key that exhausts its budget at 20:59 gets a fresh one 60 seconds later, and re-running ./test.sh inside the same clock hour will find sk-demo-block already over limit. That’s not a bug in the test; it’s the window doing what it says.

Step 4 — configure token costs, so USD budgets can charge

Swap two lines and the budget is denominated in money instead of tokens:

budgets:
- name: spend
  limit:
    unit: USD
    amount: 5.00
  window:
    rolling: 24h
  onBudgetExceeded: Block

That config is valid the moment you write it — and it will charge nothing until the gateway can compute response.cost for the requests going through it. Cost isn’t reported by the provider; it’s derived from provider usage times a per-model rate you supply. No rates, no cost, no charge, and a USD budget that silently never fires. The demo leaves the catalog empty on purpose so you can see that state:

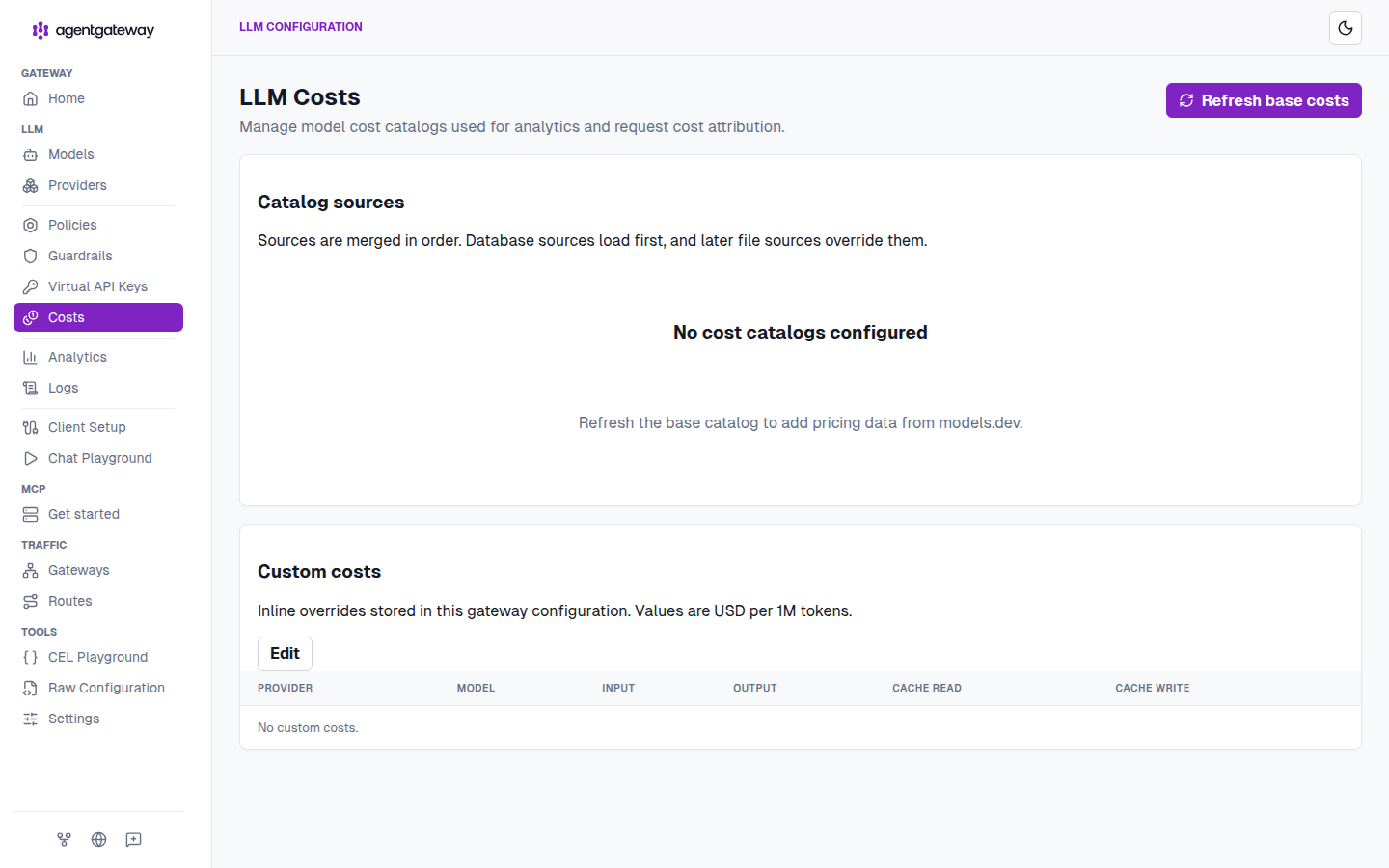

LLM → Costs with nothing configured. Note the two sentences that tell you everything about how pricing resolves: sources are merged in order — database first, file sources override — and inline custom costs are USD per 1M tokens.

You have three ways to fill that page, and they compose:

1. A catalog file, in config. This is the reproducible one:

config:
  modelCatalog:
  - file: ./cost-openai.json

The file is per-provider, per-model rates — USD per 1M tokens, as strings:

{
  "providers": {
    "openai": {
      "models": {
        "gpt-4.1": {
          "rates": { "input": "2", "output": "8", "cacheRead": "0.5" }
        },
        "gpt-4.1-mini": {
          "rates": { "input": "0.4", "output": "1.6", "cacheRead": "0.1" }
        }
      }
    }
  }
}

cacheWrite is a fourth rate where the provider charges for it (Anthropic’s prompt caching, for example). Pricing cache reads separately matters more than it looks: a cache-heavy agent workload where reads are 10× cheaper than input will blow through a USD budget at a completely different rate depending on whether you bothered to model that.

2. Refresh base costs — the button top-right on that page pulls pricing from models.dev into the database catalog. Fastest way to get approximately right pricing for a lot of models; it’s someone else’s list, so treat it as a starting point rather than as your negotiated rate card.

3. Custom costs — inline overrides stored in the gateway configuration, for the models where your real rate differs (committed volume discounts, a self-hosted model you want charged at your own cost basis, a model too new to be in any catalog).

Because sources merge in order — database first, file sources override — the sane layering is: refresh the base catalog for coverage, then let a committed file win for the models you actually care about being right.

My advice: start in Tokens, move to USD when the catalog is trustworthy. A token budget has exactly one dependency (the provider reports usage) and it either works or it doesn’t. A dollar budget has a second one (your rates are present and correct), and its failure mode is silent — a budget that never charges looks identical to a team that never spends.

Step 5 — prove it

Unauthenticated first, because mode: strict should make this impossible:

curl -s -o /tmp/out -w '%{http_code}\n' http://localhost:4000/v1/chat/completions \
  -H 'Content-Type: application/json' \
  -d '{"model":"openai/gpt-4.1-nano","messages":[{"role":"user","content":"hi"}],"max_tokens":8}'

Anything but 200. Now the Block key’s first call, which must succeed — the charge hasn’t happened yet:

curl -s http://localhost:4000/v1/chat/completions \
  -H 'Authorization: Bearer sk-demo-block' \
  -H 'Content-Type: application/json' \
  -d '{"model":"openai/gpt-4.1-nano","messages":[{"role":"user","content":"Reply with: OK"}],"max_tokens":8}' | jq .

Read the counter:

curl -s 'http://localhost:15000/api/budgets/status?apiKeyName=demo-block' | jq .

Then call again. Once used >= 40, the gateway denies it:

curl -sD - http://localhost:4000/v1/chat/completions \
  -H 'Authorization: Bearer sk-demo-block' \
  -H 'Content-Type: application/json' \
  -d '{"model":"openai/gpt-4.1-nano","messages":[{"role":"user","content":"Reply with: OK"}],"max_tokens":8}'

HTTP 429, a Retry-After header carrying the seconds left in the current epoch window, and an OpenAI-shaped error your SDK’s existing rate-limit handling already understands:

{
  "error": {
    "message": "Budget exceeded",
    "type": "rate_limit_error",
    "code": "budget_exceeded"
  }
}

That type: rate_limit_error is a deliberate kindness. Clients that already back off on 429 will back off here, and code: budget_exceeded is how you tell “you’re going too fast” apart from “you’re out of money” in a log query.

The Audit key, at the same usage, keeps answering 200 — and still reports itself over budget:

curl -s http://localhost:4000/v1/chat/completions \
  -H 'Authorization: Bearer sk-demo-audit' \
  -H 'Content-Type: application/json' \
  -d '{"model":"openai/gpt-4.1-nano","messages":[{"role":"user","content":"Reply with: OK"}],"max_tokens":8}' | jq .
curl -s 'http://localhost:15000/api/budgets/status?apiKeyName=demo-audit' | jq .

./test.sh runs that whole sequence as assertions: no-auth rejected, first Block call 200, usage charged, budget_exceeded with a Retry-After, Audit still 200, both counters non-zero.

Reading the status API

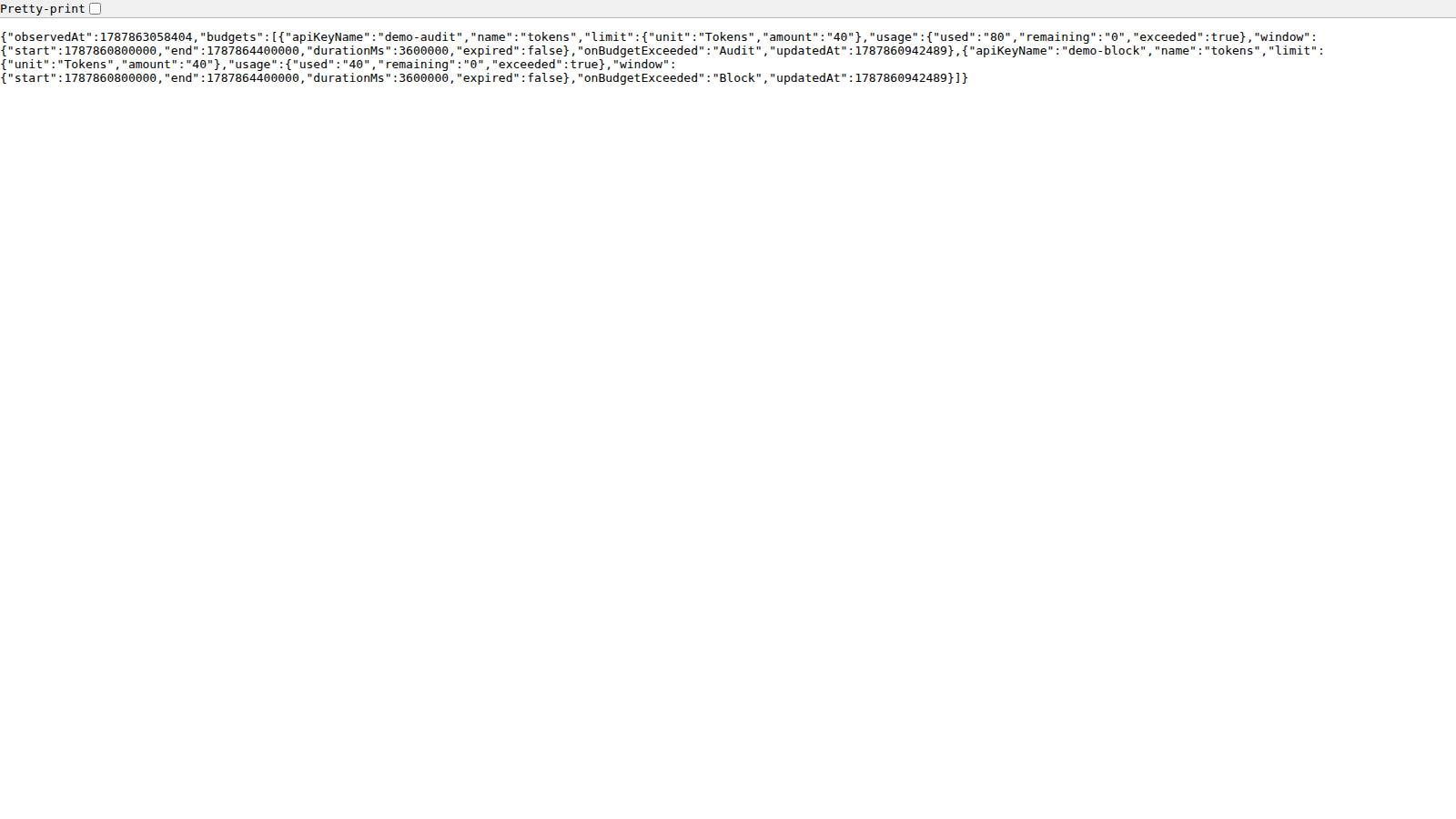

This is the endpoint to build alerting on, and the real response from the run above:

Unpacked:

{
  "observedAt": 1787863058404,
  "budgets": [
    {
      "apiKeyName": "demo-audit",
      "name": "tokens",
      "limit": { "unit": "Tokens", "amount": "40" },
      "usage": { "used": "80", "remaining": "0", "exceeded": true },
      "window": { "start": 1787860800000, "end": 1787864400000,
                  "durationMs": 3600000, "expired": false },
      "onBudgetExceeded": "Audit",
      "updatedAt": 1787860942489
    }
  ]
}

The two rows tell the story of the whole feature. demo-audit sits at 80/40 — two full completions past its limit, exceeded: true, nothing blocked. demo-block sits at exactly 40/40 — it was stopped the moment it crossed. Same budget, same traffic; the only difference is one enum.

Note also that remaining floors at 0 rather than going negative, so used is the field to alert on if you care how far past a limit an Audit key has run. And updatedAt is the last flush, not the last request — a few-second lag there is the 5-second flush interval, not a stall.

The UI renders the same data as per-key meters:

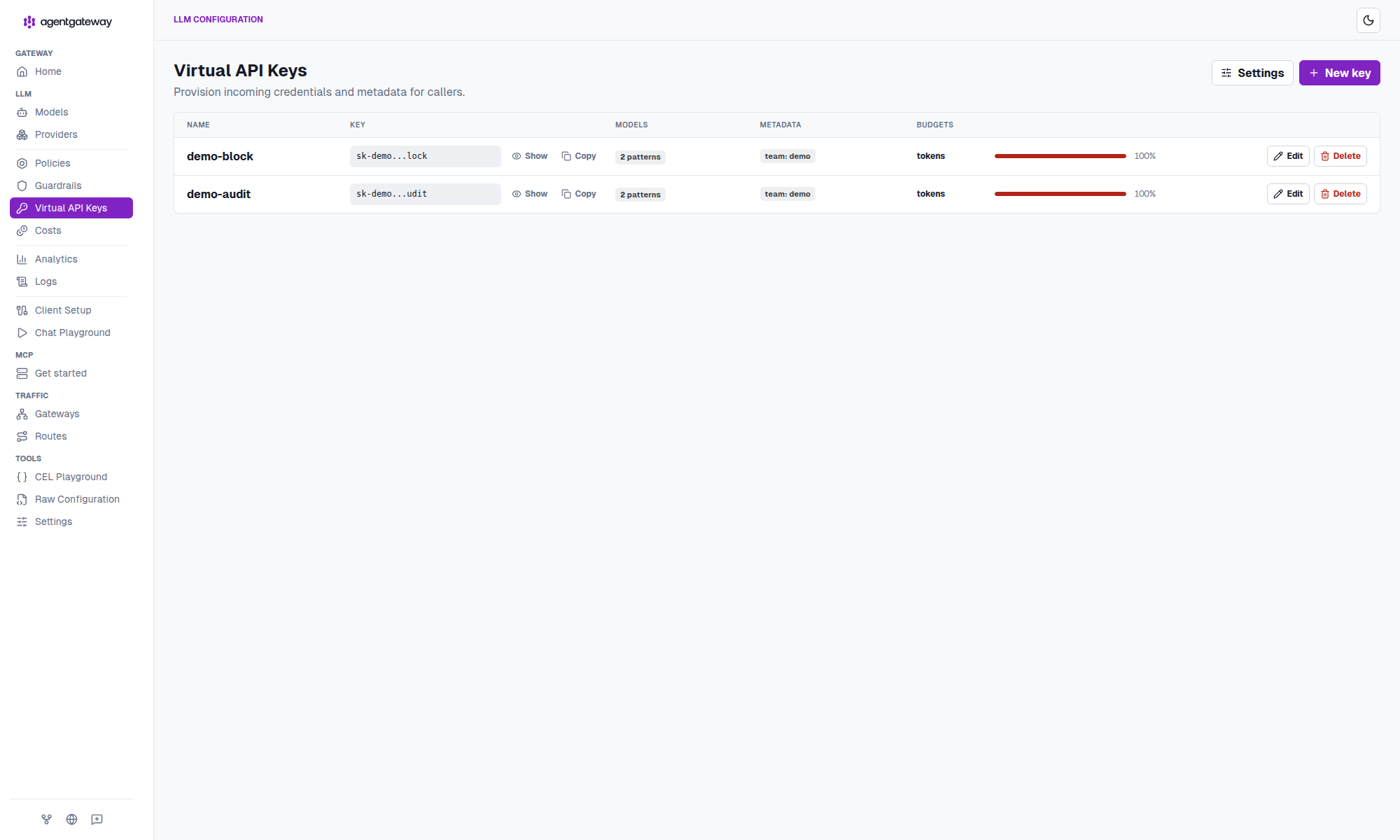

LLM → Virtual API Keys after the replay. Both keys show the tokens meter at a red 100%. The meter is the same data as /api/budgets/status — and note it reads 100% for the Audit key too. The meter shows consumption, not enforcement; a maxed-out bar doesn’t mean anything was denied.

The UI is editable, with one caveat: saving PUTs /api/config and re-serializes the file, which drops your comments. If config.yaml is in git, git diff config.yaml is the record of what the UI changed — and probably where your careful annotations went.

The five things that will bite you

1. metadata.name is required on any key with a budget — “API keys with budgets must have a metadata.name.” It’s the display name and the apiKeyName you filter the status API by.
2. agentgateway.dev/* metadata is reserved. 1.5.0 moved UI-created key IDs to metadata["agentgateway.dev/id"] (#3139). User-supplied values under that prefix are rejected — don’t set them.
3. Counters are keyed by the SHA-256 of the secret. Rotate the key string and you get a fresh counter, even if metadata.name is unchanged. That’s a convenient reset in a lab and a real bypass in production: whoever can rotate a key can clear its budget. Govern key rotation accordingly.
4. Epoch-aligned windows (step 3) — the budget resets on UTC boundaries, not on a clock that starts with the caller’s first request.
5. Post-response charging means one request of overshoot, always, and no charge at all from a provider that reports no usage. Verify usage actually lands before you trust a budget to hold.

Picking amounts and windows

A pattern that has worked for me, and which the two-key demo is a miniature of:

Run every new budget in Audit for a window or two, read used from the status API, then set an amount and flip to Block. Shipping Block with a guessed number just moves the outage from your bill to your users.

The takeaway

The interesting thing about 1.5.0’s budgets isn’t that a gateway can count tokens — it’s where the number lives. On the key, next to allowedModels and the metadata, one object describes a caller’s entire envelope: who they are, which models they may reach, how much they may spend, over what window, and what happens when they cross it. Nothing about that is the application’s job, and nothing about it depends on the client’s cooperation.

Configure three things and you’re done: a database so budgets can persist, an allowedModels list so spend is scoped to models you chose, and a budgets entry in Tokens while you learn the workload. Add a modelCatalog when you’re ready to talk in dollars — and remember that an unpriced USD budget is indistinguishable from a well-behaved team.

Full config, the run scripts, the mock provider, and the screenshots are in sebbycorp/agentgateway-demos / 16-api-key-scoped-token-budgets. The feature landed in agentgateway#3143 / v1.5.0; the standalone config schema is at https://agentgateway.dev/schema/config. For the enterprise, CRD-based take on the same problem, see Hard Spend Limits for LLM Traffic and Budgets You Can See.
